by admin Control Valve & Actuator HONEYWELL Product

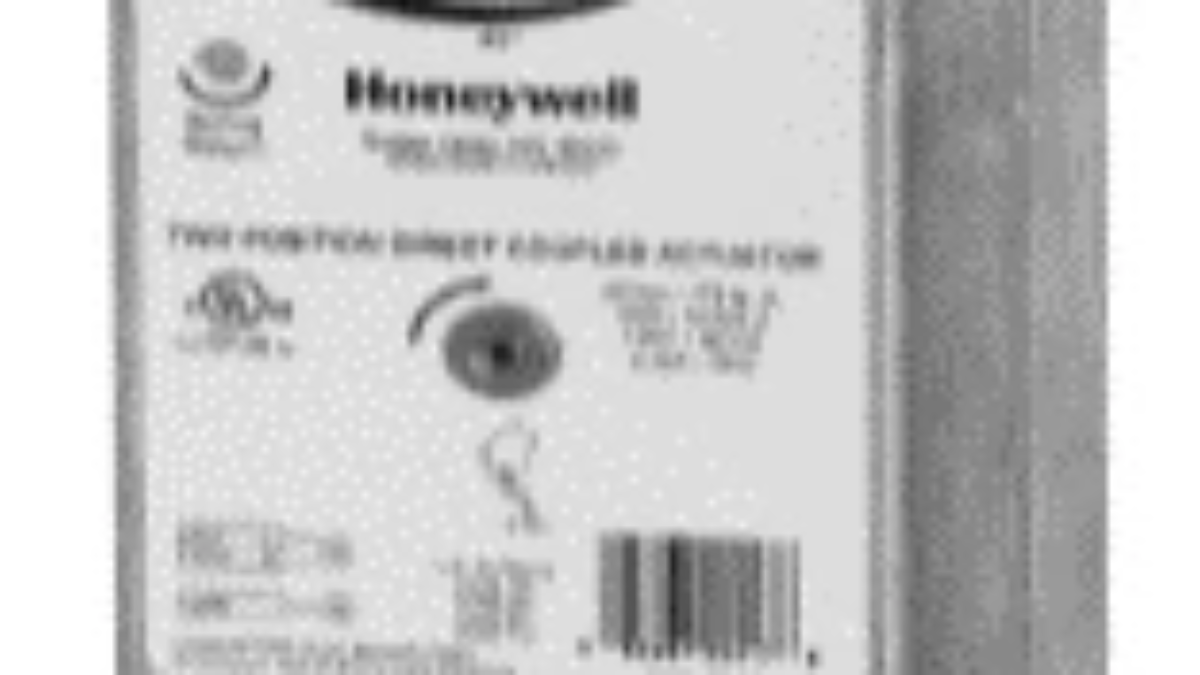

MS4120F, MS8120F

Fast-Acting, Two-PositionActuators

For Fire/Smoke Control Applications

Features :

175 lb-in. (20 N.m) minimum driving torque at 350°F (176°C).
Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation.
Integral spring return ensures level of return torque.
Stainless steel internal spring.
Fifteen-second spring return timing.
No special cycling required during long-term holding.
No audible noise during holding.
Patent pending design eliminates need for limit switches to reduce power consumption
Models available for 24, 120, and 230 Vac applications.
Actuator holds rated torque at reduced power level.
Ninety-five degree angle of rotation

by admin Control Valve & Actuator HONEYWELL Product

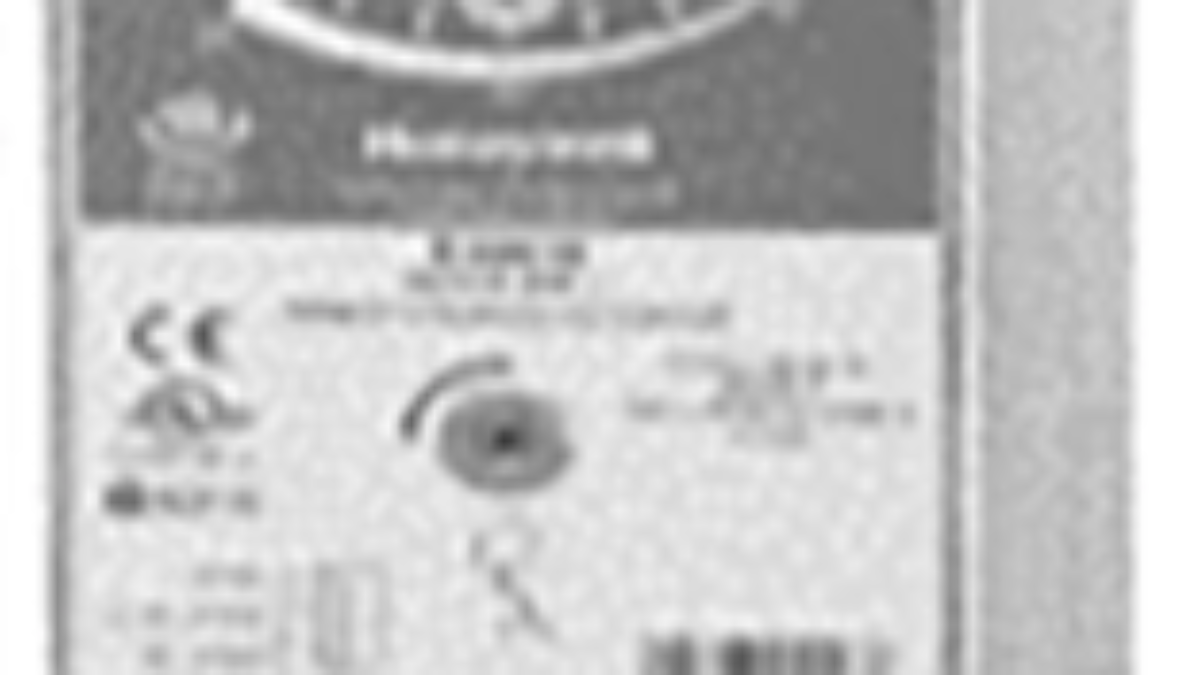

MSXX10, MSXX20 Series

88 and 175 LB-in (10 and 20 NM) Spring Return Direct Coupled Actuators MS4105a1002 (only)

MS7505A2008 (Only)

MS8105A1008 (only)

Features :

Brushless DC submotor with electronic stall protection for floating/modulating models.
Brush DC submotor with electronic stall protection for 2-position models.
Self-centering shaft adapter (shaft coupling) for wide range of shaft sizes
Access cover to facilitate connectivity.
Metal housing with built-in mechanical end limits.
Spring return direction field-selectable
Shaft position indicator and scale.
Manual winding capability with locking function.
UL (cUL) listed and CE compliant.
All Models are plenum-rated per UL873.
Models available with 3-foot, 18 AWG color-coded cable.

by admin Control Valve & Actuator HONEYWELL Product

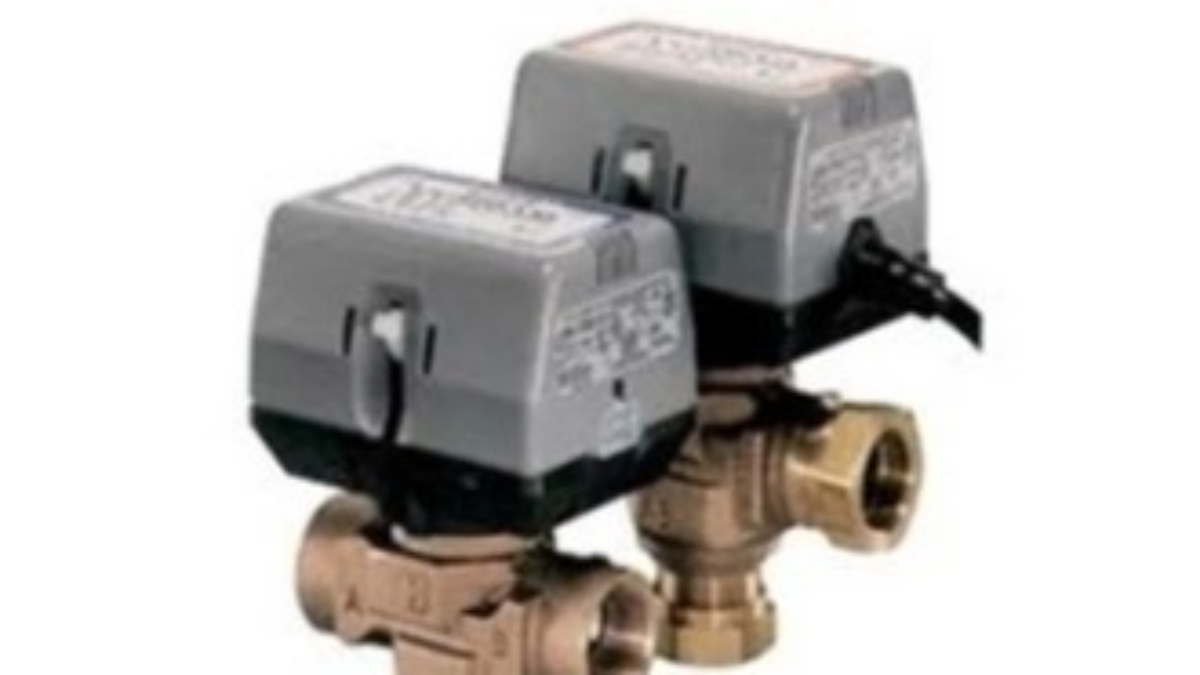

VC Series

2/3 Way balancing hydronic valve

Features :

VC valves series two way and three way valve are used two position control of chilled water air conditioning systems
Flow characteristic : Quick-opening and Linier
Size from ½” to 1”
Nominal pressure rating : Static – 20 Bar (300 psi), Burst -100 Bar (1500 psi)
Min. & Max fluid temperatures : 1° to 95°C (34 to 203°F)
Operating ambient temperature : 0 to 65°C (32 to 150°F)
Voltage : 200 ~ 240 V, 50 – 60 Hz
Input from controller : SPDT and 2-10 Vdc
