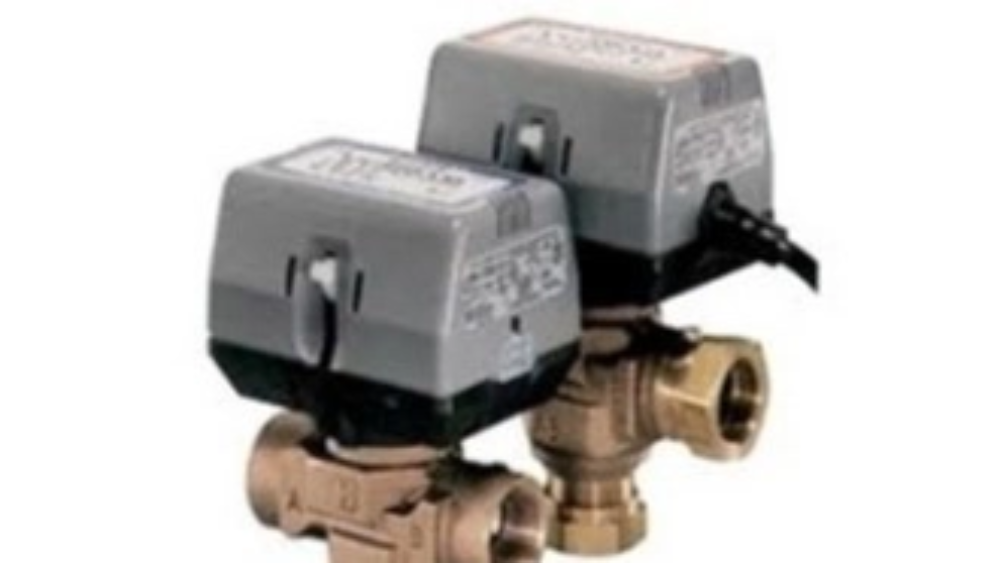

VC Series
2/3 Way balancing hydronic valve
Features :
- VC valves series two way and three way valve are used two position control of chilled water air conditioning systems
- Flow characteristic : Quick-opening and Linier
- Size from ½” to 1”
- Nominal pressure rating : Static – 20 Bar (300 psi), Burst -100 Bar (1500 psi)
- Min. & Max fluid temperatures : 1° to 95°C (34 to 203°F)
- Operating ambient temperature : 0 to 65°C (32 to 150°F)
- Voltage : 200 ~ 240 V, 50 – 60 Hz
- Input from controller : SPDT and 2-10 Vdc
